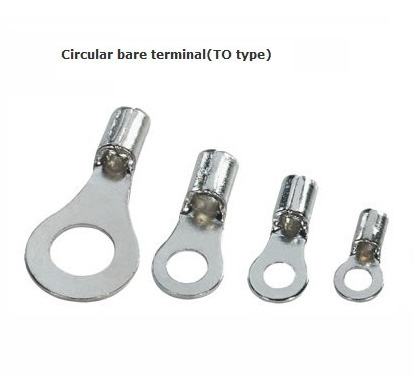

RNB
Winston
Сделано в Китае
Коробка коробки экспорта стандартная
PCS
1000
3-15days, количество заказа быть в зависимости от
1
T/T
| Раздел руководства: от 0.5 до 1.5 mm⊃2; (Spec 22 до 16 США) Imax = 19A | ||||||||
| ITEMNO | （Mm размера) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB1.25 - 3 | #4 | 3.2mm | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS1.25 - 3.5 | #6 | 3.7mm | 5.7 | 12.6 | 4.95 | |||
| RNBM1.25 - 3.5 | #6 | 3.7mm | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25 - 3.5 | #6 | 3.7mm | 8.0 | 15.8 | 7.0 | |||
| RNBS1.25 - 4 | #8 | 4.3mm | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25 - 4 | #8 | 4.3mm | 8.0 | 15.8 | 7.0 | |||
| RNB1.25 - 5 | #10 | 5.3mm | 8.0 | 15.8 | 7.0 | |||
| RNB1.25 - 6 | 1/я | 6.5mm | 11.6 | 21.8 | 11.1 | |||
| RNB1.25 - 8 | 5/16 | 8.4mm | 11.6 | 21.8 | 11.1 | |||
| RNB1.25 - 10 | 3/8 | 10.5mm | 13.6 | 25.5 | 13.9 | |||
| Раздел lead1.5 - 2.5 mm⊃2; (Spec 16 до 14 США) Imax = 27A | ||||||||
|---|---|---|---|---|---|---|---|---|
| ITEMNO | Размер (mm) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB2 - 3 | #4 | 3.2mm | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS2 - 3.5 | #6 | 3.7mm | 6.6 | 12.3 | 4.3 | |||
| RNBM2 - 3.5 | #6 | 3.7mm | 6.6 | 16.0 | 7.0 | |||
| RNBL2 - 3.5 | #6 | 3.7mm | 8.5 | 16.8 | 7.75 | |||
| RNBS2 - 4 | #8 | 4.3mm | 6.6 | 16.0 | 7.0 | |||
| RNBL2 - 4 | #8 | 4.3mm | 8.5 | 16.8 | 7.75 | |||
| RNBS2 - 5 | #10 | 5.3mm | 8.5 | 16.8 | 7.75 | |||
| RNBL2 - 5 | #10 | 5.3mm | 9.5 | 16.8 | 7.25 | |||
| RNB2 - 6 | 1/я | 6.5mm | 12.0 | 21.8 | 11.0 | |||
| RNB2 - 8 | 5/16 | 8.4mm | 12.0 | 21.8 | 11.0 | |||
| RNB2 - 10 | 3/8 | 10.5mm | 13.6 | 25.5 | 13.9 | |||
| Раздел руководства: от 2.5 до 4 mm⊃2; (Spec 14 до 12 США) Imax = 37A | ||||||||
| ITEMNO | Размер (mm) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB3.5 - 4 | #8 | 4.3mm | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
| RNBS3.5 - 5 | #10 | 5.3mm | 8.0 | 18.0 | 7.7 | |||
| RNBL3.5 - 5 | #10 | 5.3mm | 12.0 | 21.4 | 7.7 | |||
| RNB3.5 - 6 | 1/я | 6.5mm | 12.0 | 21.4 | 7.7 | |||
| Раздел руководства: от 4 до 6 mm⊃2; (Spec 12 США до 10) Imax = 48A | ||||||||
| ITEMNO | Размер (mm) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB5.5 - 3.5 | #6 | 3.7mm | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS5.5 - 4 | #8 | 4.3mm | 7.2 | 15.7 | 5.9 | |||
| RNBL5.5 - 4 | #8 | 4.3mm | 9.5 | 19.8 | 8.3 | |||
| RNB5.5 - 5 | #10 | 5.3mm | 9.5 | 19.8 | 8.3 | |||
| RNB5.5 - 6 | 1/я | 6.5mm | 12.0 | 25.8 | 13.0 | |||
| RNB5.5 - 8 | 5/16 | 8.4mm | 15.0 | 28.0 | 13.7 | |||
| RNB5.5 - 10 | 3/8 | 10.5mm | 15.0 | 28.0 | 13.7 | |||
| RNB5.5 - 12 | 1/2 | 13.0mm | 19.2 | 32.4 | 16.0 | |||
| Раздел руководства: от 0.5 до 1.5 mm⊃2; (Spec 22 до 16 США) Imax = 19A | ||||||||
| ITEMNO | （Mm размера) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB1.25 - 3 | #4 | 3.2mm | 5.7 | 12.6 | 4.95 | 4.8 | 3.4 | 1.7 |
| RNBS1.25 - 3.5 | #6 | 3.7mm | 5.7 | 12.6 | 4.95 | |||
| RNBM1.25 - 3.5 | #6 | 3.7mm | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25 - 3.5 | #6 | 3.7mm | 8.0 | 15.8 | 7.0 | |||
| RNBS1.25 - 4 | #8 | 4.3mm | 6.6 | 14.4 | 6.3 | |||
| RNBL1.25 - 4 | #8 | 4.3mm | 8.0 | 15.8 | 7.0 | |||
| RNB1.25 - 5 | #10 | 5.3mm | 8.0 | 15.8 | 7.0 | |||
| RNB1.25 - 6 | 1/я | 6.5mm | 11.6 | 21.8 | 11.1 | |||
| RNB1.25 - 8 | 5/16 | 8.4mm | 11.6 | 21.8 | 11.1 | |||
| RNB1.25 - 10 | 3/8 | 10.5mm | 13.6 | 25.5 | 13.9 | |||
| Раздел lead1.5 - 2.5 mm⊃2; (Spec 16 до 14 США) Imax = 27A | ||||||||
|---|---|---|---|---|---|---|---|---|
| ITEMNO | Размер (mm) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB2 - 3 | #4 | 3.2mm | 6.6 | 12.3 | 4.3 | 4.8 | 4.1 | 2.3 |
| RNBS2 - 3.5 | #6 | 3.7mm | 6.6 | 12.3 | 4.3 | |||
| RNBM2 - 3.5 | #6 | 3.7mm | 6.6 | 16.0 | 7.0 | |||
| RNBL2 - 3.5 | #6 | 3.7mm | 8.5 | 16.8 | 7.75 | |||
| RNBS2 - 4 | #8 | 4.3mm | 6.6 | 16.0 | 7.0 | |||
| RNBL2 - 4 | #8 | 4.3mm | 8.5 | 16.8 | 7.75 | |||
| RNBS2 - 5 | #10 | 5.3mm | 8.5 | 16.8 | 7.75 | |||
| RNBL2 - 5 | #10 | 5.3mm | 9.5 | 16.8 | 7.25 | |||
| RNB2 - 6 | 1/я | 6.5mm | 12.0 | 21.8 | 11.0 | |||
| RNB2 - 8 | 5/16 | 8.4mm | 12.0 | 21.8 | 11.0 | |||
| RNB2 - 10 | 3/8 | 10.5mm | 13.6 | 25.5 | 13.9 | |||
| Раздел руководства: от 2.5 до 4 mm⊃2; (Spec 14 до 12 США) Imax = 37A | ||||||||
| ITEMNO | Размер (mm) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB3.5 - 4 | #8 | 4.3mm | 8.0 | 18.0 | 7.7 | 6.0 | 5.0 | 3.0 |
| RNBS3.5 - 5 | #10 | 5.3mm | 8.0 | 18.0 | 7.7 | |||
| RNBL3.5 - 5 | #10 | 5.3mm | 12.0 | 21.4 | 7.7 | |||
| RNB3.5 - 6 | 1/я | 6.5mm | 12.0 | 21.4 | 7.7 | |||
| Раздел руководства: от 4 до 6 mm⊃2; (Spec 12 США до 10) Imax = 48A | ||||||||
| ITEMNO | Размер (mm) | |||||||
| USABOLTNO | Dia БОЛТА. d2Φ | B | L | F | H | DΦ | dΦ | |
| RNB5.5 - 3.5 | #6 | 3.7mm | 7.2 | 15.7 | 5.9 | 6.8 | 5.6 | 3.4 |
| RNBS5.5 - 4 | #8 | 4.3mm | 7.2 | 15.7 | 5.9 | |||
| RNBL5.5 - 4 | #8 | 4.3mm | 9.5 | 19.8 | 8.3 | |||
| RNB5.5 - 5 | #10 | 5.3mm | 9.5 | 19.8 | 8.3 | |||
| RNB5.5 - 6 | 1/я | 6.5mm | 12.0 | 25.8 | 13.0 | |||
| RNB5.5 - 8 | 5/16 | 8.4mm | 15.0 | 28.0 | 13.7 | |||
| RNB5.5 - 10 | 3/8 | 10.5mm | 15.0 | 28.0 | 13.7 | |||
| RNB5.5 - 12 | 1/2 | 13.0mm | 19.2 | 32.4 | 16.0 | |||
